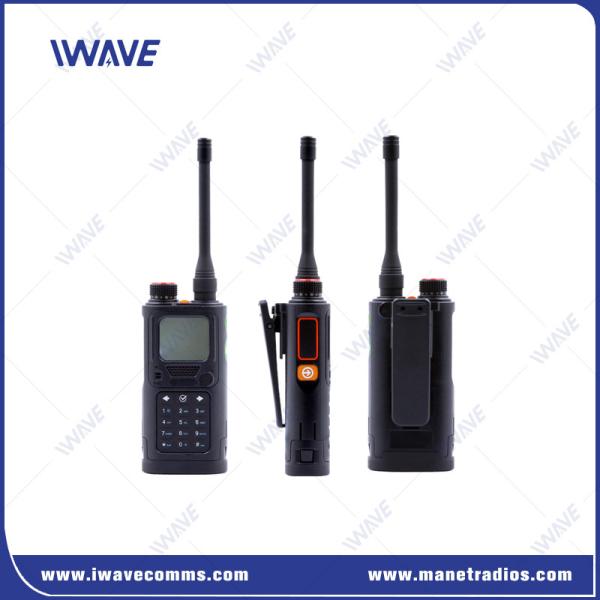

Long Distance MANET Radios Portable Two Way Radio Communication

Name: Long Distance MANET Radios Portable Two Way Radio Communication
Brand: IWAVE
Price: 1 USD

Best Long Distance MANET Radios Portable Two Way Radio Communication wholesale

Brand Name : IWAVE

Model Number : Defensor-T4

Certification : CE, MIC

Place of Origin : China

MOQ : 2

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500000

Delivery Time : 5-8work days

Packaging Details : Standard carton box

Network : Ad-hoc

VHF : 136-174MHz

UHF1 : 350-390MHz

UHF2 : 400-470MHz

Protection Grade : IP67

Battery : 3200mAh Li-ion battery

Battery Life : 24hours

Contact Now

Long Distance MESH Handset Two Way Radio Communication

Introduction

Ad-Hoc Network Radio

The T4 uses wireless MANET(Mobile Ad Hoc Network) technology that provides narrowband self-grouping multi-hop links to achieve a wide area of mesh coverage with digital voice and high security.

T4 is the most compatible professional radio around the world. It is designed to support Ad Hoc. T4 makes a reliable and secured communication radio to ensure that you continue to operate anywhere, on any system. The radio also comes with a GPS navigation function which allows you to locate another user with direction and distance on the radio's screen.

Key Features

DMO True 6-Slot

In Direct mode T4 can provide 6-slot communication, which allows for 6 talk paths on 1 frequency.

Longer Battery Life

In Ad-hoc mode, with 3100mAh battery, T4 can operate for more than 24 hours under a duty cycle of 5-5-90.

Mobile Command and Dispatching Center

Dispatcher can monitor all the tactical radios with the real time battery level, signal strength, online status,GPS locations, etc.
Send and receive real-time voice and text to improve situational awareness.

Smaller Size, IP68 Protection Level, Robust Design

T4 adopts an innovative integrated die-cast structure of lightweight aluminum alloy and plastic. The vertical oval design is comfortable to hold and durable.
The IP68 protection level can withstand extreme conditions such as water, dust, and explosion. It can be used normally in harsh environments.

Application

IWAVE manet radios fire and rescue communication solution offers a comprehensive communication system. T4 handset two way radios work with the manet base stations, which can rapidly establish a temporary, reliable and secure wireless link on demand. The flexibility of the network deployment ensures that it can be rapidly set up to meet the needs of various emergency situations. The solution enables frontline responders to maintain communication with the on-site command center even in complex environments.

Specifications

Handheld MESH Radio Base Station(Defensor-T4)
General		Transmitter
Frequency	VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz	RF Power	1W/5W Switch(VHF) 1W/4W Switch(UHF)
Channel Capacity	300 (10 Zone, each with a maximum of 30 channels)	4FSK Digital Modulation	12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE
Channel Interval	Digital: 12.5khz	Conducted/Radiated Emission	-36dBm<1GHz -30dBm>1GHz
Operating Voltage	7.4V±15%(rated)	Modulation Limiting	±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz
Frequency Stability	±1.5ppm	Adjacent Channel Power	60dB @ 12.5 kHz 70dB @ 25 kHz
Antenna Impedance	50Ω	Audio Response	+1~-3dB
Dimension	1245635mm(without antenna)	Audio Distortion	5%
Weight	293g	Environment
Battery	3200mAh Li-ion battery (standard)	Operating Temperature	-20°C ~ +55°C
Battery Life with standard battery	24hours	Storage Temperature	-40°C ~ +85°C
Protection Grade	IP67
